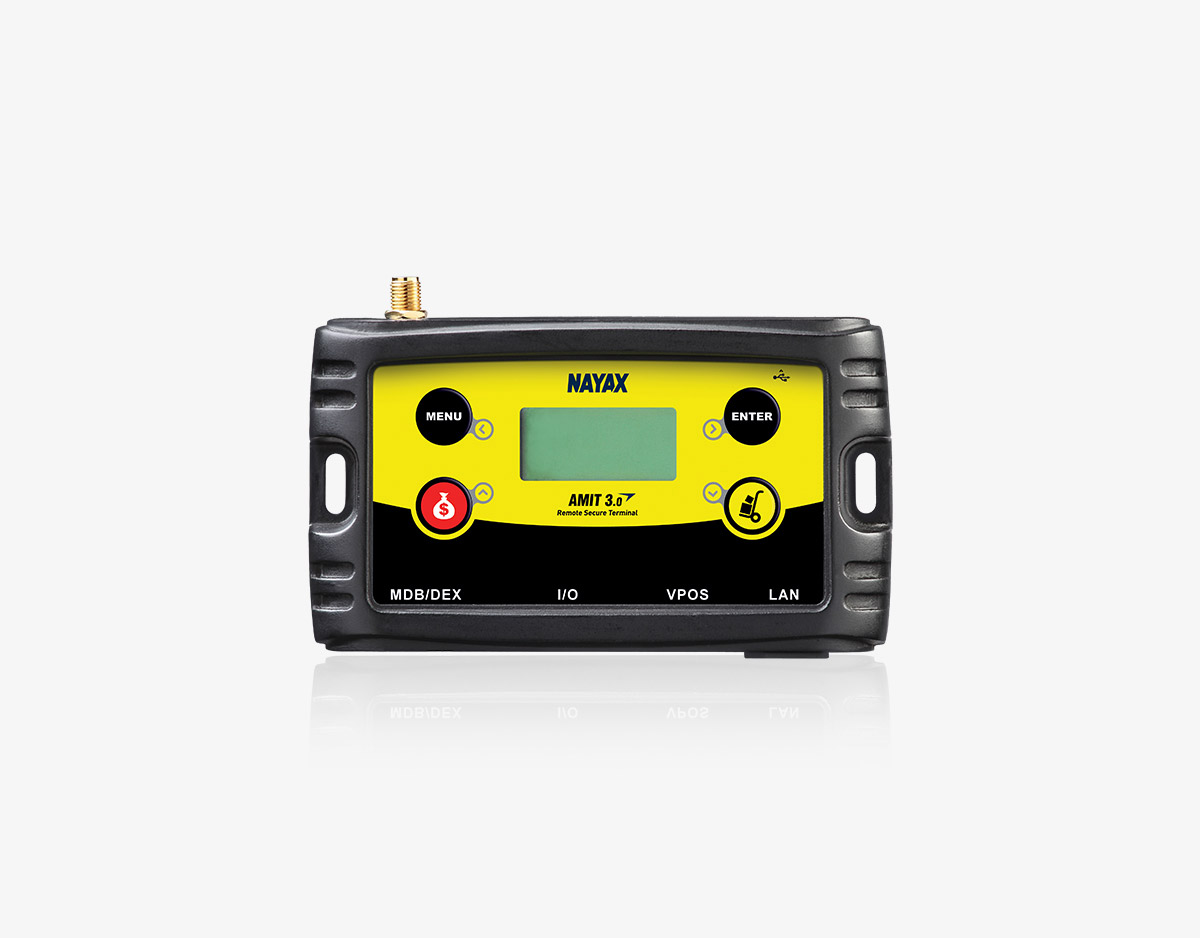

Amit 3.0

Amit 3.0

About Amit 3.0

AMIT 3.0 is a complete M2M vending telemetry solution ideally suited for unattended machine operators and applications. AMIT 3.0 gives operators the ability to monitor machines in real-time with continuously updated information regarding all aspects of operation including inventory, cash monitoring, alerts, reports, route planning, and remote device control.

This secure terminal enables reliable communications across the following:

External Communication – GSM/GPRS/CDMA/Ethernet/Wi-Fi
MDB/Pulse/VCCS/ccTalk
DEX/DDCMP/RS232 Interface
See the Brochure

Temperature

Operating Temperature  –  -30°C – 50°C  –  -22°F – 122°F
Humidity  –  5% – 95% (non-condensing)
Storage Temperature  –  -40°C – 60°C  –  -40°F – 140°F
Humidity  –  5% – 95% (non-condensing)

Peripheral Ports

Mini USB (Host/Device), Ethernet with external Wi-Fi capability
1 X Reader interface
2 X RS232 interface (RS232 or TTL level manageable through software)
2 X Pulse input/output interfaces + pulse input (Inhibit)
2 X Sensors – door open, temperature sensor

Main Features

ARM Technology – Cortex , 32-bit, 168 Megahertz
High Security Encryption System: AES/DES/RSA/SSL
External flash up to 16 MB
MDB Spy – Capture and analyze messages from all MDB peripherals

Physical Dimensions

H  –  4.56”  –  116mm
D  –  1.18”  –  30mm
W –  2.55”  –  65mm
Weight  –  4.93 ounces  –  140 grams

Installation & Support

Easy installation – Device attached to the machine by2 built in magnets
Remote software update
Multi-language Support – LCD text & Voice Audio
Menu navigation and service functionalities

Power

Power supply: input 10 – 42 Volt AC, 10 – 30 Volt DC, External output 8 Volt DC
International Protection Rating: IP50
Power consumption 0.3 watt(Idle State) – 1watt (online) 1.9” / 48.3mmC
2 X Super capacitors – for power down alert
Electrostatic discharge:  IEC 61000-4-2, level 4 (ESD)
