VPOS

ABOUT VPOS

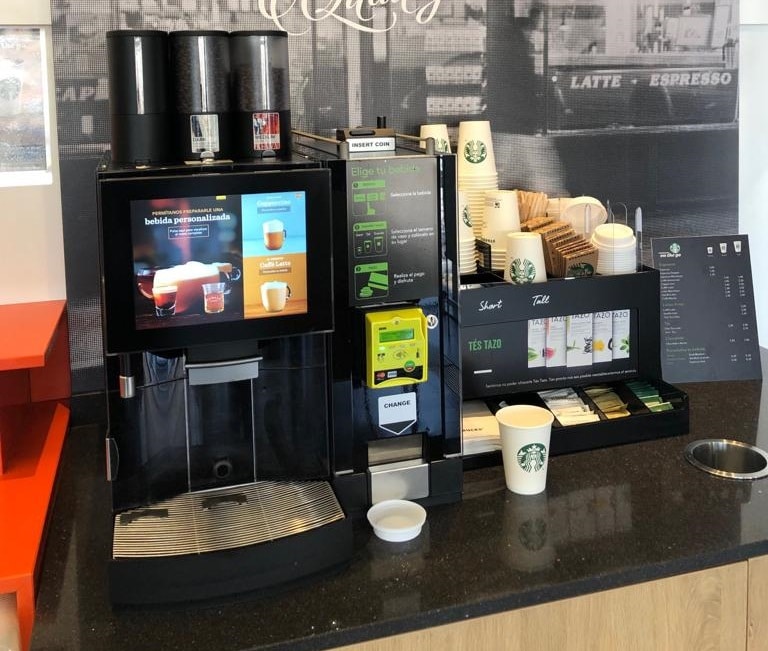

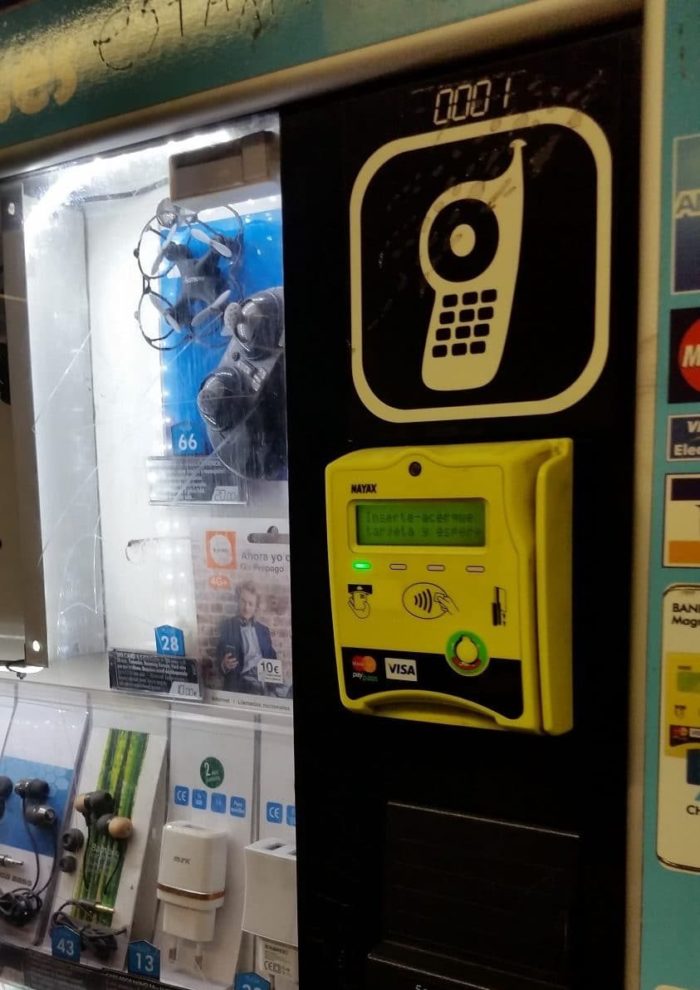

Give your customers the flexibility to pay any way they choose. VPOS provides an all-in-one solution for magnetic swipe, contact, and contactless operations for unattended automated machines. A universally certified solution, VPOS utilizes the latest technology so cashless vending machine operators are able to accept all forms of payment with the added benefits of easy installation, clearance, monitoring, and management.

See the Brochure

FEATURES

Part of a Complete Cashless Payment

VPOS is one arm of a complete cashless payment solution. The system seamlessly integrates with telemetry, cashless clearance, monitoring, management, and business analytics offerings to facilitate a full service vending payment solution that is secure, durable, and reliable.

Communicate with your Consumers

Communicating with users has long been a challenge for operators of unattended cashless vending machines. VPOS enables voice interaction with your consumer in the local language. Additionally, two languages can be displayed to better facilitate consumer interaction.

Plug and Play

VPOS is easy to install and use and is compatible with all automated machine standards. Nayax takes care of all software updates remotely to ensure that your devices benefit from the latest technology and are up to date with payment standards and requirements.

Supported Payment Schemes

Contact Card: EMV Level 1 + Level 2 – Certified
Contactless: EMV Level 1 – Certified
Contactless: EMV Level 2:
– Visa PayWave MSD + qVSDC
– MasterCard PayPass Mag Stripe
Magnetic Stripe Card – ISO7811, Track 1 + Track 2
Other Cards Supported: NFC, MIFARE, HID-iClass
Support of Payment Applications – Global and Local Environment

Physical Dimensions

H  –  4.13”  –  105mm
W  –  3.31”  –  84mm
D  –  1.9”  –  48.3mm
Weight  –  8.11 ounces  –   230 grams

Technical Information

Interface communication – RS232 up to 115,200 kbps
2 X 16 Character LCD display + 4 LEDs + Buzzer + Speaker
Transaction start/end button
Power Supply: 8 Volt DC – 16 Volt DC
Security – Support of DES, 3DES, AES, RSA, SHA1 algorithms
On-board SAM: EMV/HID support
RF contactless Interface: Frequency – 13.56 MHz, MIFARE, NFC, HID

Regulatory Compliance

EMVco Level 1 + Level 2
CE + FCC + RoHS

Operating Conditions

Temperature  –  -30°C – 50°C  –  -22°F – 122°F
Humidity  –  5% – 95% (non-condensing)

Storage Conditions

Temperature  –  -40°C – 60°C  –  -40°F – 140°F
Humidity  –  5% – 95% (non-condensing)

Standards

ISO 7816 Contact Smart Card, approved by EMVco
ISO 14443 Type A and B, approved by EMVco
ISO 15693
